DESCRIPTION

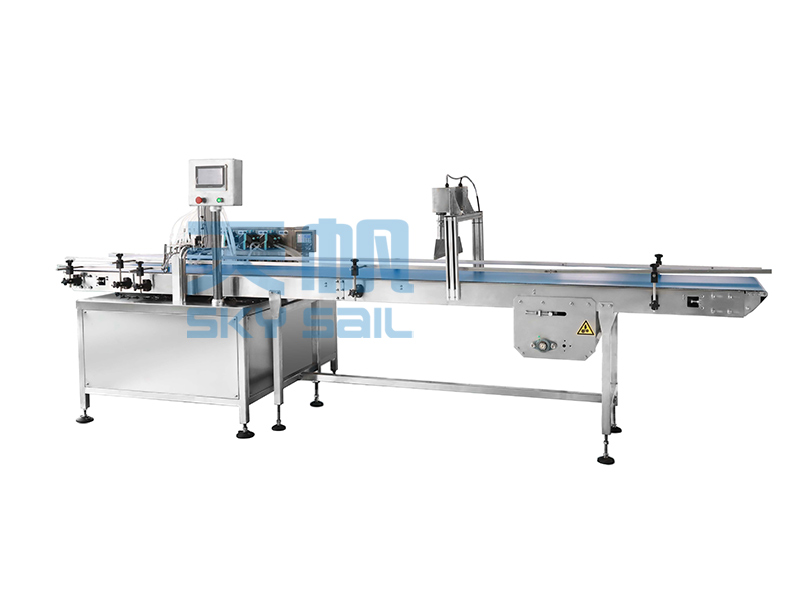

TFTC-RD-10 ten head peristaltic pump filling machine is a common filling equipment, mainly used for automatic filling of liquid and semi fluid materials. It has the characteristics of easy operation and high filling accuracy, and is widely used in industries such as food, beverage, medicine, cosmetics, etc.
The working principle of the ten head peristaltic pump filling machine is to complete the filling process through several independent peristaltic pumps. A peristaltic pump is a type of pump that uses frictional effects to feed materials into the pump chamber and discharge them. It uses two or more rollers or gears to rotate and squeeze and push out the material in the pipeline. Each peristaltic pump of the ten head peristaltic pump filling machine can be independently adjusted, and the filling volume can be adjusted according to the different needs of the product. By controlling the rotational speed of the peristaltic pump and the pressure of the pipeline, material filling with different viscosities and flow rates can be achieved.
The main components of the ten head peristaltic pump filling machine include the filling head, control system, conveyor belt, and frame. The filling head is a key component for completing the filling action, and its quantity determines the filling speed of the machine. The control system can set parameters through the touch screen, including filling volume, speed, frequency, etc., to achieve automated control. The conveyor belt can automatically transport bottles to the filling position, ensuring the continuity and stability of filling. The rack plays a role in supporting and stabilizing the equipment.
When using a ten head peristaltic pump filling machine, the first step is to place the material in the storage tank. Then, place the empty bottles on the conveyor belt, which will transport them to the filling position. Next, set the corresponding parameters through the touch screen, select filling volume, speed, and frequency, and start the equipment. The peristaltic pump starts working, extracting materials from the storage tank and filling them into empty bottles. After the bottles are filled, the conveyor belt will send out the already filled bottles. The entire filling process can be repeated until all filling tasks are completed.
The ten head peristaltic pump filling machine has many advantages. Firstly, it can accurately adjust the filling amount according to the needs of the product, ensuring the accuracy of filling. Secondly, the ten head peristaltic pump filling machine is suitable for materials with different viscosities and flow rates, and has good adaptability. In addition, the equipment adopts automated control, which is simple and convenient to operate, reducing the tedious manual operation. In addition, the replacement and cleaning of the peristaltic pump filling machine are relatively convenient and fast, which improves production efficiency.
However, the ten head peristaltic pump filling machine also has some limitations. Firstly, peristaltic pump filling machines have high requirements for material viscosity, and materials with lower viscosity may not function properly. Secondly, the production capacity of peristaltic pump filling machines is relatively low, which cannot meet the needs of large-scale production. In addition, peristaltic pump filling machines may cause significant leakage and waste in the filling of some special materials.
In summary, the ten head peristaltic pump filling machine is a common filling equipment with the characteristics of easy operation and high filling accuracy. It is widely used in industries such as food, beverage, medicine, cosmetics, etc. With the continuous development and innovation of technology, the peristaltic pump filling machine will be continuously improved and perfected to meet the needs of different industries.
