Main features:

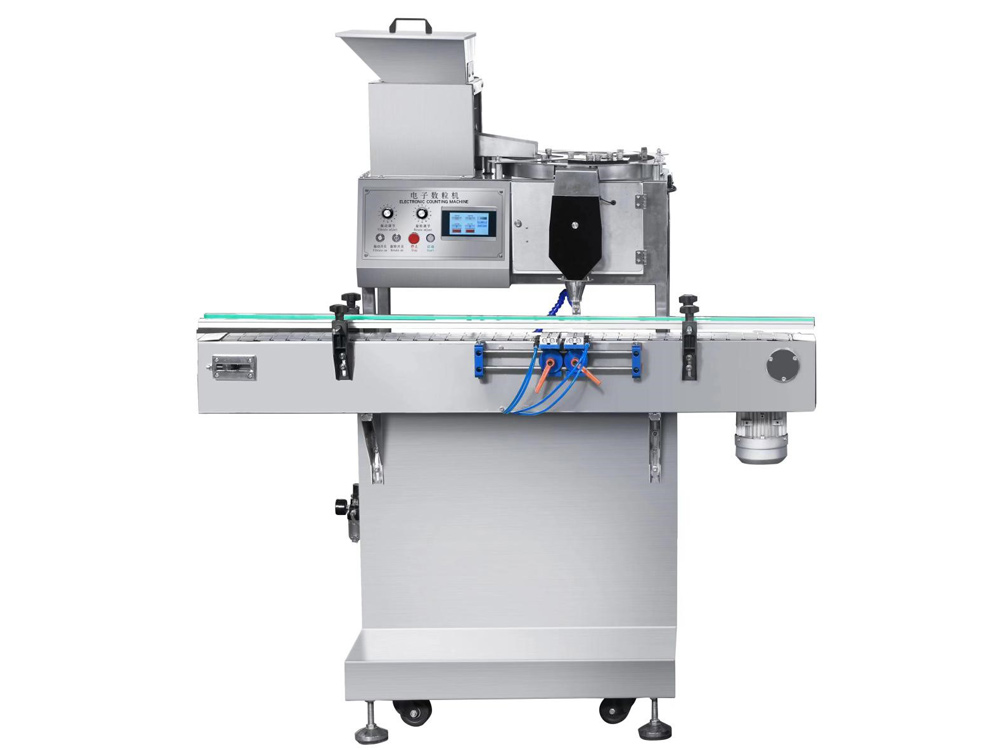

The TF-100A electronic counting machine is the latest product developed by our company, which has the advantages of wide application range, high production efficiency, and can be used for multiple purposes. This machine can be used for capsules, soft capsules, tablets (including irregular shaped tablets), pills, candies, and grain seed products. And it can meet the requirements of the national drug production quality management standard 'GMP'
This machine adopts anti high dust photoelectric counting technology, which can count and package pills and tablets with a diameter range of 20 or less, compatible with capsules 000-5, soft capsules, and tablets with a diameter of 5.5-22.
Can be bottled, boxed, and bagged, fully compliant with GMP requirements, especially suitable for research institutions, hospitals, newly established small pharmaceutical factories, and health product factories.
Packaging scope:
Suitable for packaging circular and square bottles with a diameter of 25-75mm and a height of ≤ 240mm, as well as various bags and boxes.
Technical parameters:
1 | Equipment Name | Fully Automatic Rotary Electronic Counting Machine |
2 | Model | TF-100A |
3 | Applicable objects | Pills with a diameter of 20 or less are compatible with capsules numbered 000-5, soft capsules with a diameter of 5.5-22, plain tablets, irregular tablets, sugar coated tablets |
4 | Production speed | 10-40 bottles/minute (depending on the loading capacity) |
5 | Applicable bottle type | bottle diameter 0-100mm, height 40-150mm |
6 | Power supply | 220V/50HZ/0.3KW |
7 | Gas consumption | 0.4-0.6Mpa/3.8L/min |
8 | Equipment size | 1360*730*1500mm |
9 | Weight | 100KG |
