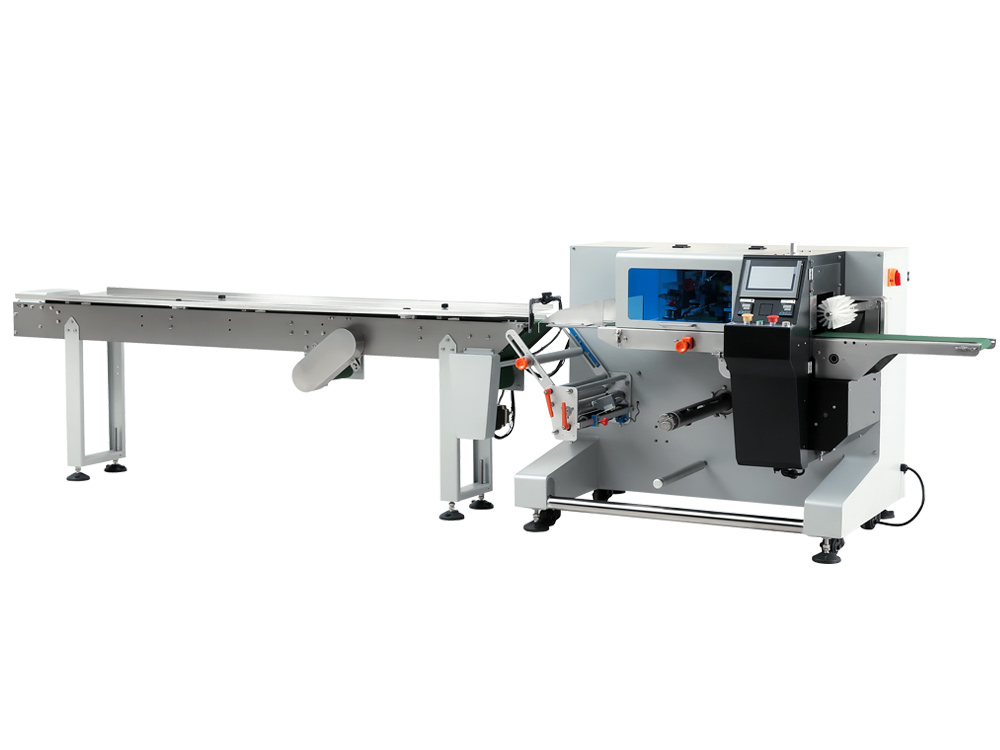

Characteristics of the whole machine:
▍High degree of automation: It can automatically complete processes such as material and packaging material supply, wrapping, sealing, cutting, and finished product output.
▍Mechanical adjustment: It is convenient and fast to change product specifications.
▍Adopting a programmable controller to program the operation of the entire machine.
▍Touch screen human-machine interface, which can set packaging speed, bag length and other parameters for convenience and speed.
▍The packaging is sealed flat, with clear and beautiful embossing.
▍The transmission system is simple, more reliable in operation, and easier to maintain.
1. Power supply: 1AC220V 50Hz 4.5kW
2. Packaging film material: OPP/PVC/CPP/PTPE/KOP/CPP, etc
3. Packaging film width: 80-370
4. Product specifications: length 80-500mm, width 60-160mm, height 5-50mm
5. Packaging speed: 30-60 packs/min (set material height to 50mm, material length and height will affect packaging speed)
6. Equipment weight: 450kg
7. Dimensions: L4000mm × W1000mm × H1000mm
8. Suitable for products with regular shapes similar to rectangular prisms, and loose parts need to have pallets.
9. The conveying direction is from left to right.
10. Working principle:
The packaging film is wrapped in a certain form of film, driven by the active roller, and passes through the forming machine to wrap the material in a roll shape; Under the action of the film pulling wheel and the intermediate belt, the material and packaging film are simultaneously transported to the longitudinal sealing position for longitudinal sealing and cutting. At the same time, the excess film cut from the longitudinal sealing is fixed on the waste film collection roller through the wheel and swing mechanism. Then it is transported to the horizontal sealing device through the middle belt. While the upper and lower cutting blades of the horizontal sealing rotate, the middle belt moves forward to complete a horizontal heating sealing and cutting, thus completing the pillow packaging, which is output through the output mechanism.
